Micro Turbo Compressor

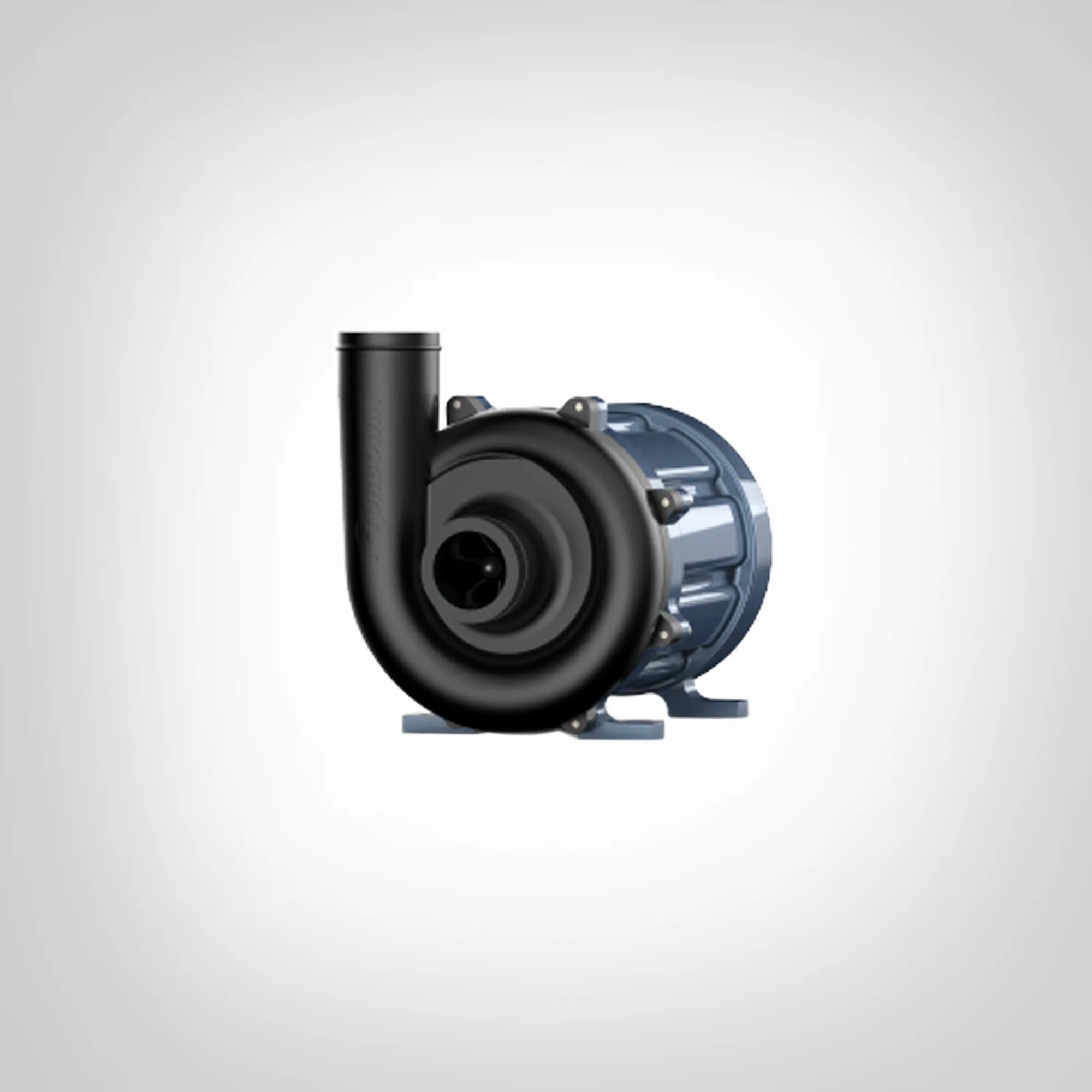

WH-m Series: High-Performance Oil-Free Micro Turbo Compressor
▐ High-Pressure, Oil-Free Air—Reimagined for Compact Spaces
The WH-m Series from Easyflex TurboAir, powered by Turbowin technology, is a micro-sized, oil-free turbo compressor engineered to deliver high-pressure, clean air in the most space-constrained environments. Whether supporting electronics manufacturing, medical devices, lab equipment, or decentralized industrial systems, the WH-m Series offers powerful compression in a compact, ultra-efficient package—without sacrificing purity or reliability.
Now available in the U.S., the WH-m Series brings next-generation centrifugal compression to applications where space, noise, and cleanliness are mission-critical.
▐ Key Features & Benefits

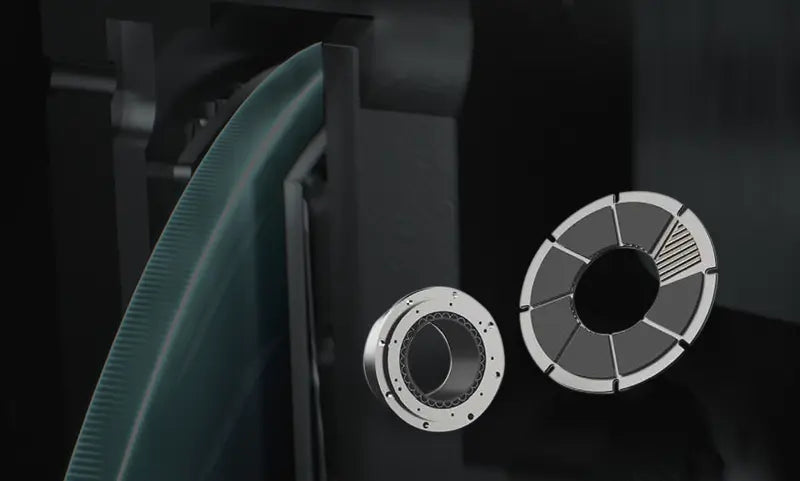

☑️ 100% Oil-Free, Contamination-Free Compression
Equipped with NBW™ airfoil bearings and a direct-drive Ultra HEPM motor, the WH-m Series ensures zero oil contact—delivering clean, ISO Class 0 air for process-critical applications.

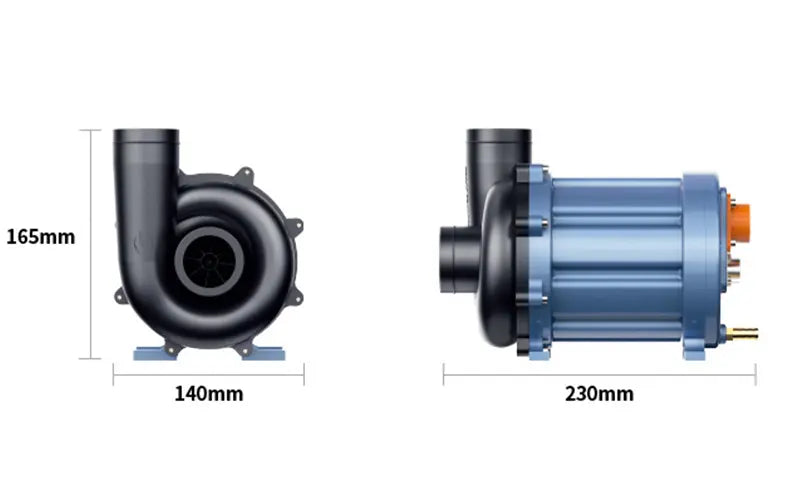

☑️ Compact & Lightweight Form Factor
Designed for installation in OEM systems, lab equipment, and small-scale cleanroom environments, the WH-m Series offers powerful compression in a space-saving, lightweight package.

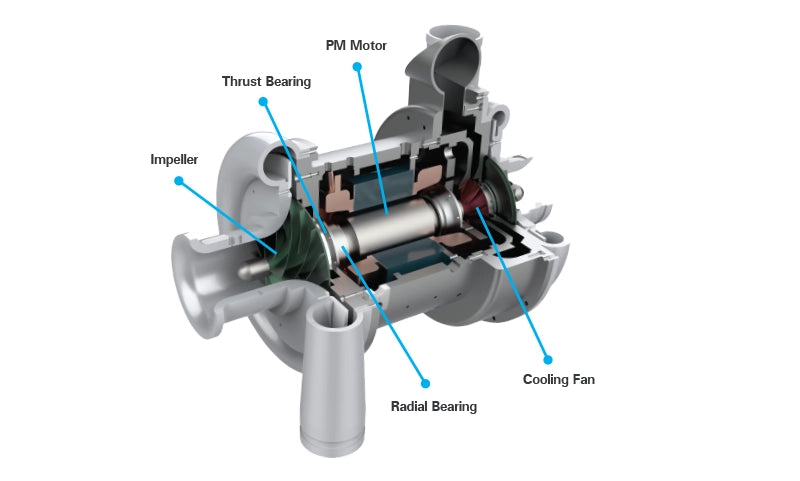

☑️ High-Speed Efficiency
Using ultra-high-speed permanent magnet motors (up to 150,000 RPM), this compressor delivers exceptional energy efficiency—reducing power consumption and heat output.
☑️ Quiet & Vibration-Free Operation
Ideal for enclosed or indoor use, the WH-m Series features low noise levels and minimal vibration, supporting a more stable and comfortable operating environment.
☑️ Air-Cooled—No External Cooling Required
The integrated dual air-cooling system keeps components at safe operating temperatures without water cooling or external chillers, simplifying system integration.
☑️ Smart Monitoring Capable
Compatible with remote monitoring and IoT platforms for real-time diagnostics, status updates, and predictive maintenance alerts.
▐ Ideal for Applications
- ✔ Electronics & Semiconductor Production Equipment
- ✔ EV Battery Manufacturing (for cleanroom dry air systems)
- ✔ Medical & Laboratory Equipment
- ✔ Precision Coating & Printing Systems
- ✔ Biotech, Pharma, and Small-Scale Fermentation Systems
- ✔ OEM Industrial Air Supply Solutions
- ✔ Robotic & Pneumatic Micro-Assembly Systems
▐ Technical Overview
Explore the core technical attributes that define turbo compressor performance.
0.5 to 5 m³/min |
|
2 to 4 bar |
|
1 to 10 HP |
|
Up to 150,000 RPM |
|
< 70 dB(A) |
|
Air-cooled (dual cooling system) |
|
Panel- or frame-integrated custom support available |
